Extremely Accurate Dimmable Nixie Clock
A project in Rochester Hills, MI by Jerzy Giedzinski000days
:
00hours
:
00minutes
Funding Successful
Dimmable accurate 6-Nixie Tube Clock with 2-year battery backup. Individually CNC-cut thick cast acrylic glass for this timeless piece!
Backers: 19
Average Pledge Per Backer: $245
Funded: $4,661 of $2,000
Dates: Nov 4th -> Dec 19th (45 days)
Project By: Jerzy Giedzinski
Backers: 19
Average Pledge Per Backer: $245
Funded: $4,661 of $2,000
Dates: Nov 4th -> Dec 19th (45 days)
Project By: Jerzy Giedzinski
$4,661
current pledge level
Last Updated: December 19 @ 20:30 -0500 GMT
233%
of goal

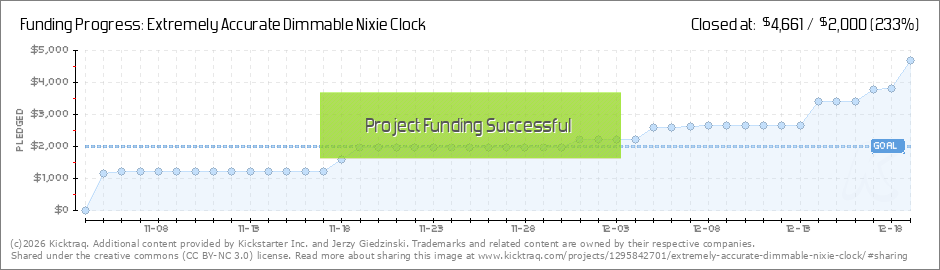

(loading your very own snazzy kicktraq chart)
